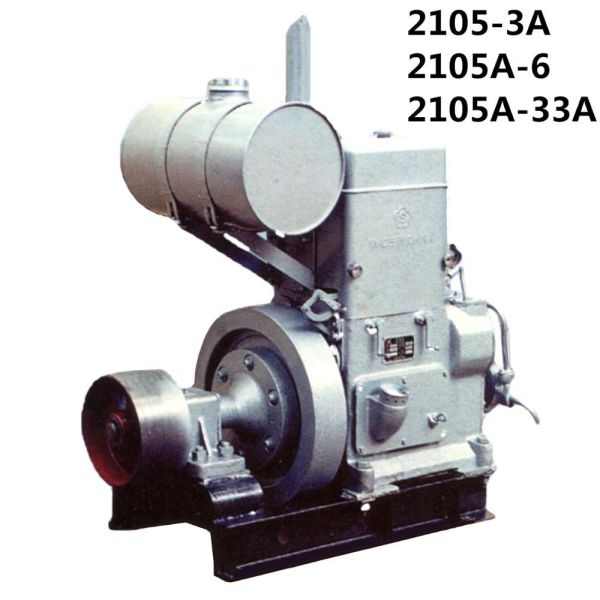

Diesel Engine, 2105A Series-Model 2105A-3A; 2105A-6

  • 1
  • 2
  • 3

Brand Name : XinFeng

Model Number : 2105A-3A; 2105A-6

Place of Origin : Jiangsu, China

MOQ : 1 SET

Price : $450.00-$1,200.00/Set

Payment Terms : L/C, D/P, T/T

Supply Ability : 100 Sets Per Month

Delivery Time : 1-36 Sets/60 Days; ＞36 To Be Negotiated

Packaging Details : Plywood Case

Certification : CE

Name : Diesel Engine, 2105A Series-Model 2105A-3A; 2105A-6

Cylinder : Multi-cylinder

Start : Manual Starting

Weight : 430KGS

Core Components : Engine

Power : 18.6 KW

Showroom Location : Pakistan

Stroke : 4 Stroke

Cold Style : Water-cooled

Dimension(L*W*H) : 1140 x 620 x 1070

Warranty : One Year After the Date of Shipment

Rated Power/Speed : 1500rpm

Contact Now

Diesel Engine, 2105A Series-Model 2105A-3A; 2105A-6

Usages

Diesel engine 2105A is an improved model of 2105 diesel engine. Its 12 hour rating is increased to 24ps or 26ps from original 20ps. Agricultural diesel engine units model 2105A-3A is a variant of 2105A diesel engine. It is applied as drive power for irrigation and drainage, processing machines of products from farm and sideline, etc.

Features

* Advanced technique after experiences of production through a long history
* Compact, rigid and reliable, easy to operate and maintain
* Steady performance, high power reserve
* With separate bearing assembly and drive pulley
* With sliding-type mounting frame.
Series Unit 2105A
Type Vertical, wate-cooled, 4 stroke, swirl combustion chamber
No. of cylinder 2
Bore mm 105
Stroke mm 130
Speed pcs/min. 1500
Power HP 24
Net weight kg 340
2105A-3A

Steel frame pedestal, with a separate support bearing house, flat pulley

size:Ø235 ×130mm
2105A-33A

Steel frame pedestal, with a separate support bearing house, flat pulley

size:Ø235 ×130mm
2105A-6

Steel frame pedestal, directly connecting with flywheel,falt pulley

size:Ø190×235mm
Diesel Engine, 2105A Series-Model 2105A-3A; 2105A-6Diesel Engine, 2105A Series-Model 2105A-3A; 2105A-6
